Place of Origin : Hubei, China
Price : $25,000/units 1-9 units
Product name : Dust suppression vehicle
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders






| Vehicle technical parameters | | | | | ||||
| product name | Pure electric cleaning sprinkler truck | product model | HTT 5181GXSBEV | | ||||
| gross mass (Kg) | 18000 | Production address | Suizhou City, Hubei Province | | ||||
| Rated load mass (Kg) | 8230,8165 | outline dimension (mm) | 9500,9400,9100,8500X2550X3000,2960 | | ||||
| curb weight (Kg) | 9640 | axle weight | 6500/11500 | | ||||
| Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
| Approach angle / departure angle of (°) | 6/7,11/7 | Front suspension / rear suspension (mm) | 1410/2590 | | ||||
| wheel base | 4500,5000,5300 | Top vehicle speed (Km/h) | 89 | | ||||
| Chassis technical parameters | | | | | ||||
| Chassis model | EQ1180GLEVJ1 | Chassis brand | Pure electric truck chassis | | ||||
| number of axles | 2 | Number of tires | 6 | | ||||
| tyre size | 295/80R22.5 18PR,295/80R22.5 16PR | | | | ||||
| Number of steel plate spring sheets | 9/10+8,9/11+8,3/4+3,4/4+3,9/10,9/11 | | | | ||||
| front gauge (mm) | 1960,1980,2050 | rear track (mm) | 1880,1860 | | ||||
| Fuel types | Pure electric | ABS | have | | ||||
| Chassis wheelbase | 4500,5000,5300 | Battery brand | Ningde era | | ||||
| Maximum power of the chassis motor | 165KW | Upper volume | 8.56 Fang | | ||||
| battery capacity | 196KWH | Rated power of the mounted motor | 30KW | | ||||
| Chassis full load of range | 271 KM | The loading consumes power per hour | 20KWH | | ||||
| Charging time (under the recommended power) | About 2 hours | Charging pile power is recommended | 120KW | | ||||
| engine type | | displacement (ml) | power (Kw) | horsepower | ||||
| TZ342XS-HSM1651 | | | 165 | 225 | ||||
| After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | | ||||







|
|

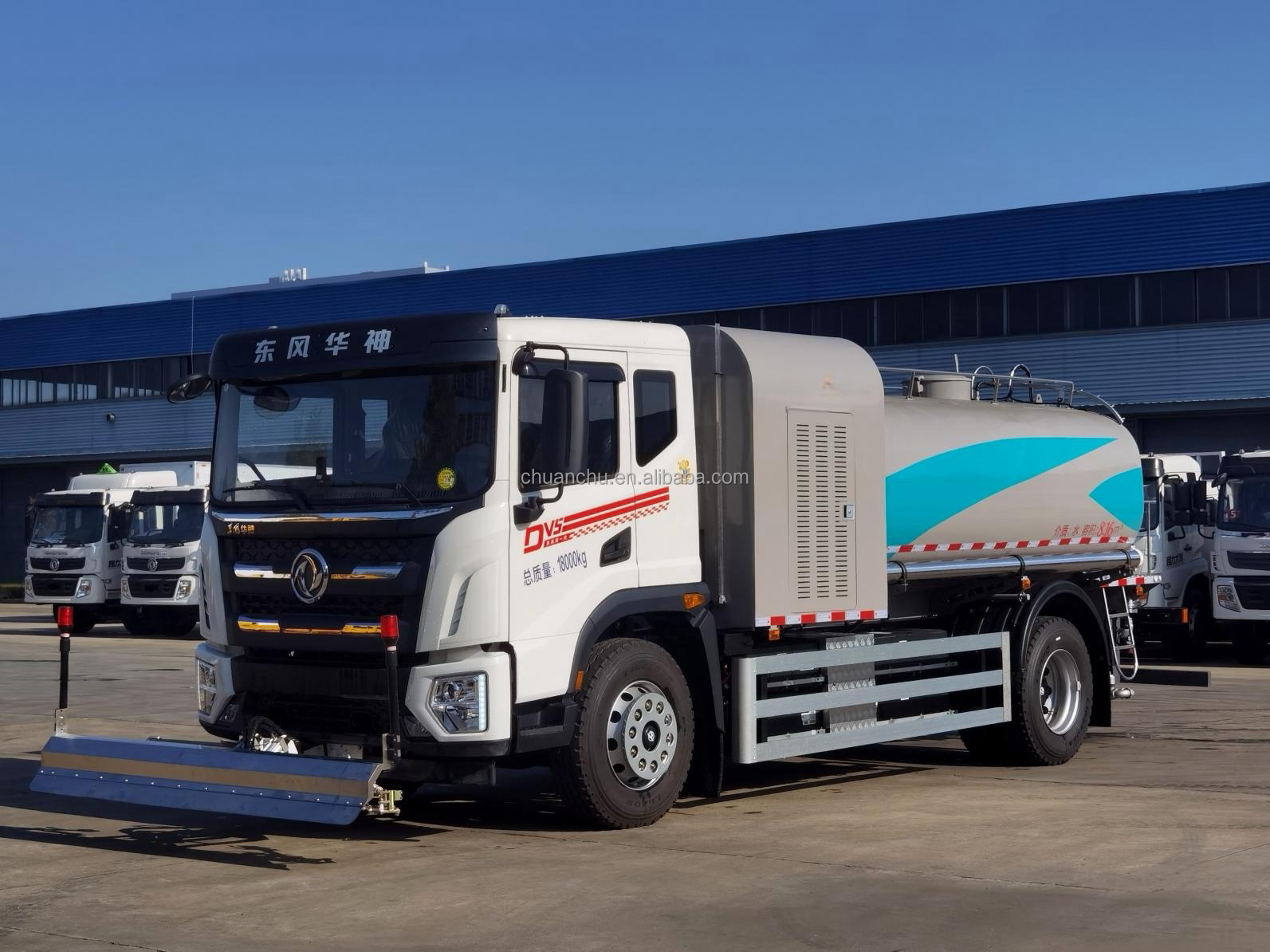

Energy type Pure Electric 5181GXSBEV Street-Sweeping Cleaning Vehicle for Street Cleaning Images |
