Place of Origin : Hubei, China
Price : $22,000/units 1-9 units
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders








| Vehicle technical parameters | | | | | ||||
| product name | Pure electric cleaning truck | product model | HTT 5040TXSBSL | | ||||
| gross mass (Kg) | 4495 | Production address | Suizhou City, Hubei Province | | ||||
| Rated load mass (Kg) | 545,745 | outline dimension (mm) | 5620×1750,1730×2300,2200,2150,2080 | | ||||
| curb weight (Kg) | 3820,3620 | axle weight | 1650/2845 | | ||||
| Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
| Approach angle / departure angle of (°) | 21/5 | Front suspension / rear suspension (mm) | 1190/1630 | | ||||
| wheel base | 2800,3000,3200,3400 | Top vehicle speed (Km/h) | 110 | | ||||
| Chassis technical parameters | | | | | ||||
| Chassis model | DFH1180EX8 | Chassis brand | truck chassis | | ||||
| number of axles | 2 | Number of tires | 6 | | ||||
| tyre size | 185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR | | | | ||||
| Number of steel plate spring sheets | 3/5 | | | | ||||
| front gauge (mm) | 1369,1387 | rear track (mm) | 1242,1342 | | ||||
| Fuel types | Pure electric | ABS | have | | ||||
| Chassis wheelbase | 3300,3850 | Upper volume | 2.5 Square | | ||||
| Maximum power of the chassis motor | 70KW | Maximum cleaning capacity | 56000(㎡/h) | | ||||
| Battery pack rated voltage | 386.4V | battery capacity | 66KWH | | ||||
| Rated power of the mounted motor | 20KW | The loading consumes power per hour | 15KWH | | ||||
| Charging pile power is recommended | 120KW | charging time | About 0.5 hours | | ||||
| engine type | | displacement (ml) | power (Kw) | horsepower | ||||
| Q23-95E60 | | 4500 | 70 | 95 | ||||
| After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | | ||||







|
|

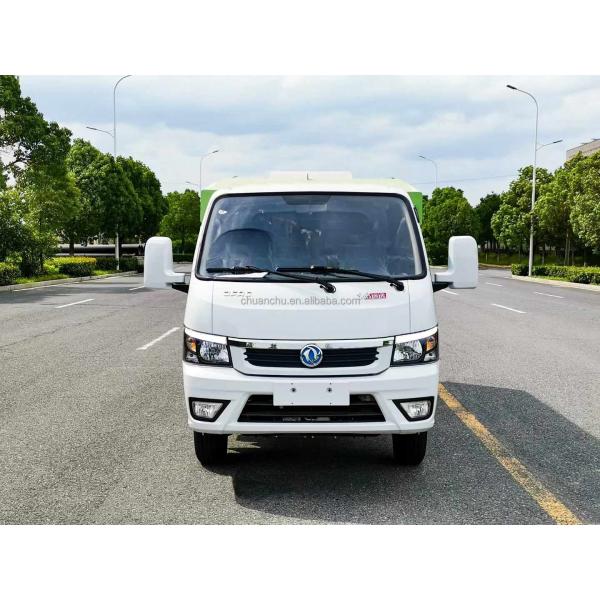

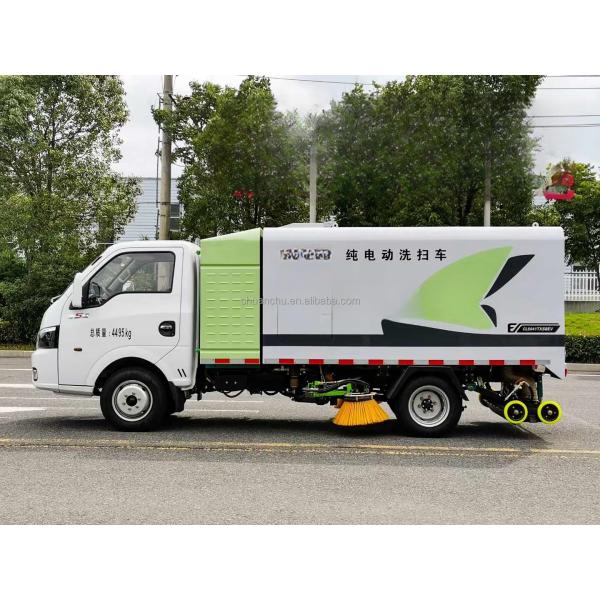

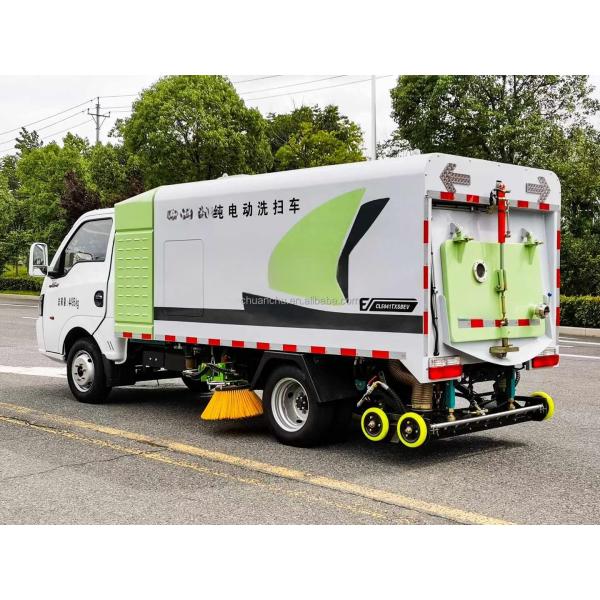

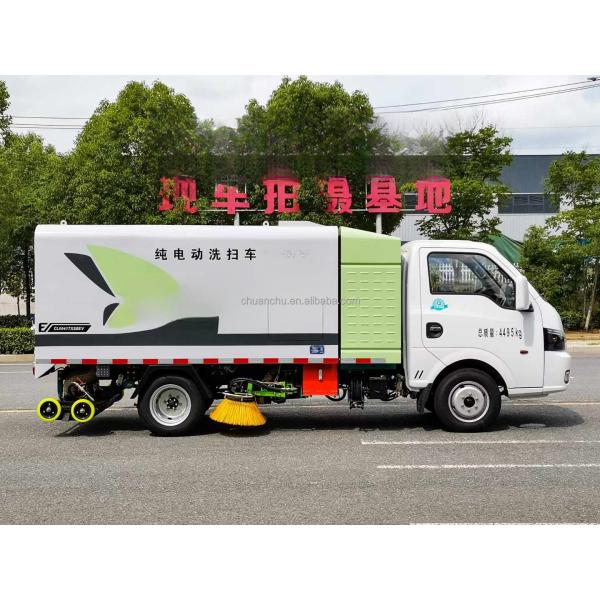

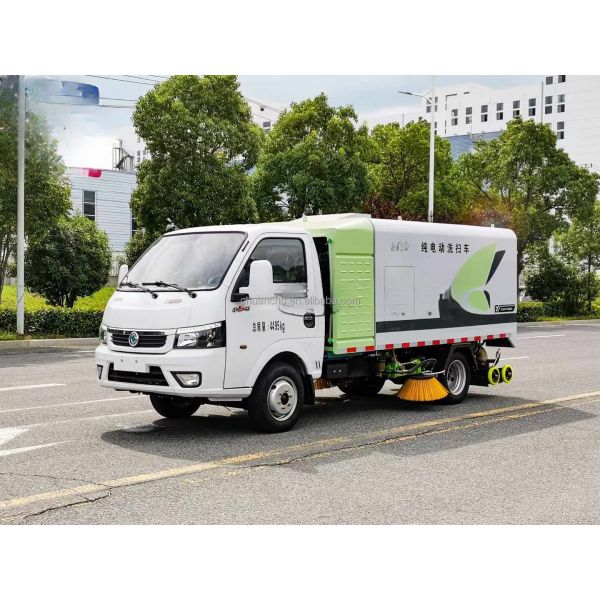

Pure Electric Municipal Sanitation Washing Street Sweeping Vehicle Road Dust Vacuum Road Sweeper Truck Images |
